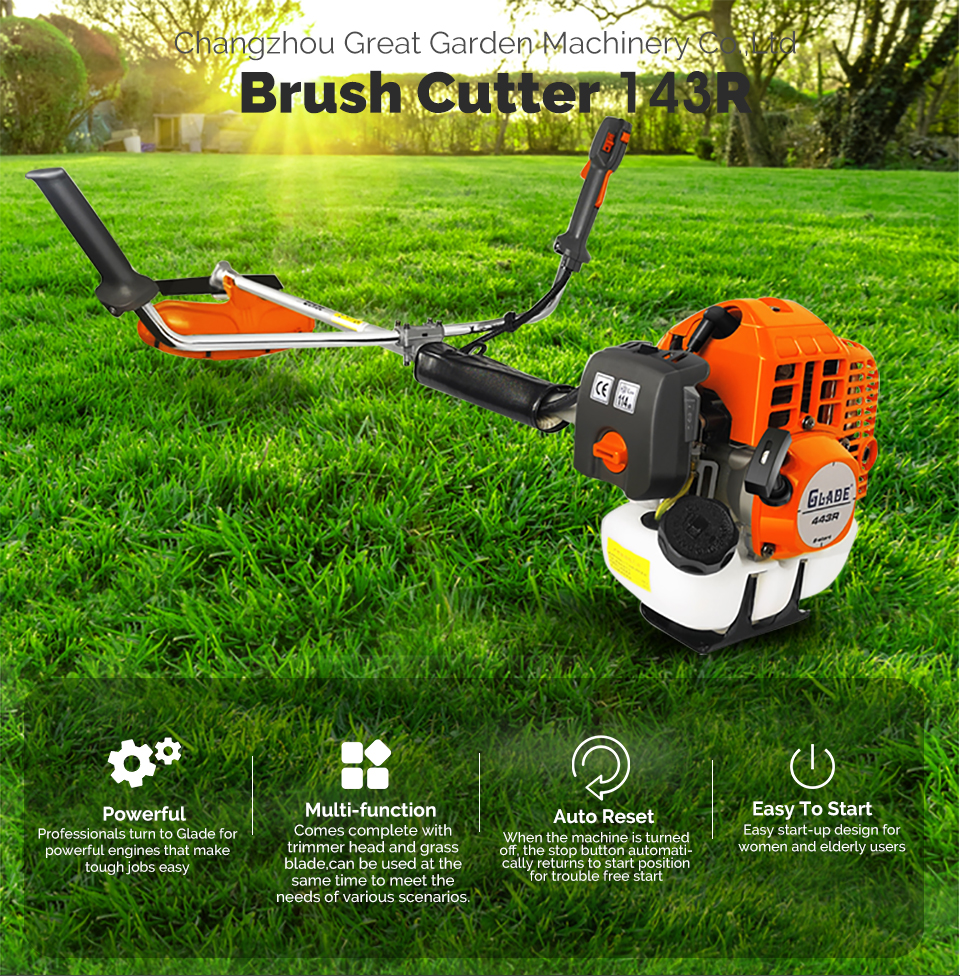

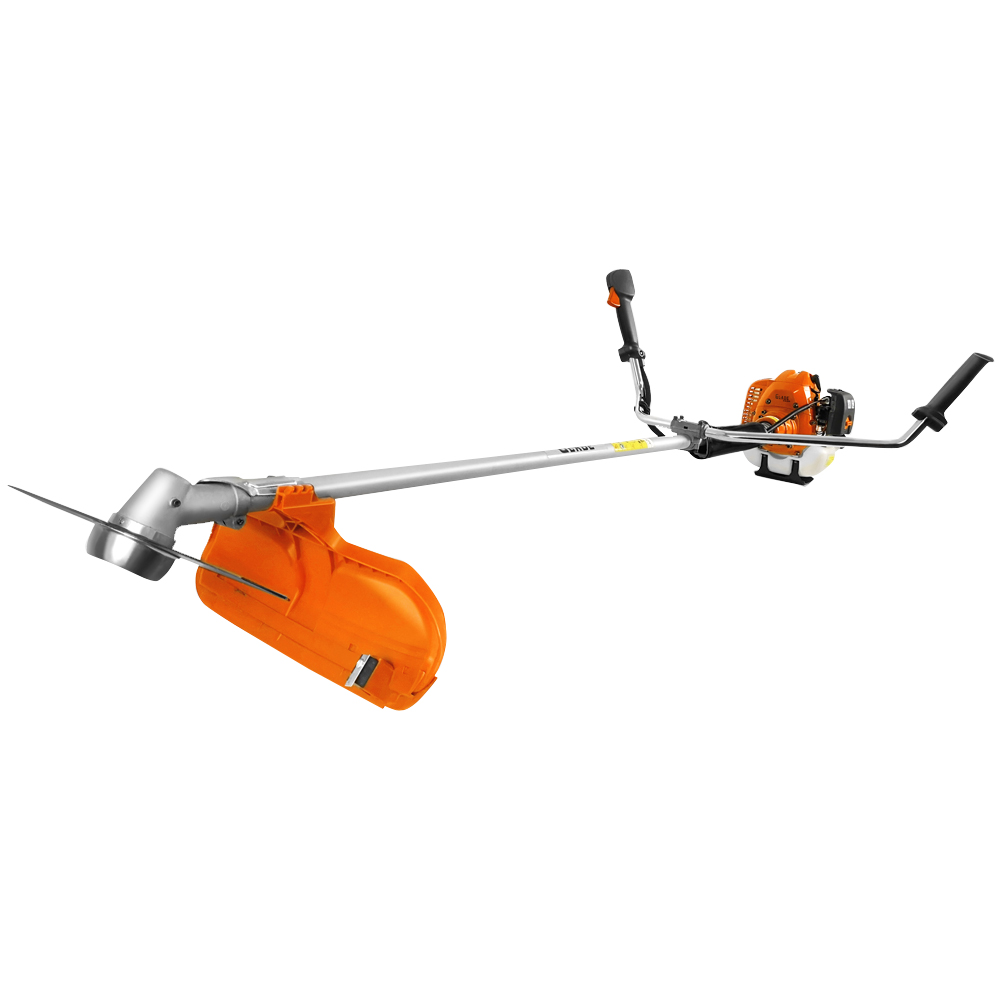

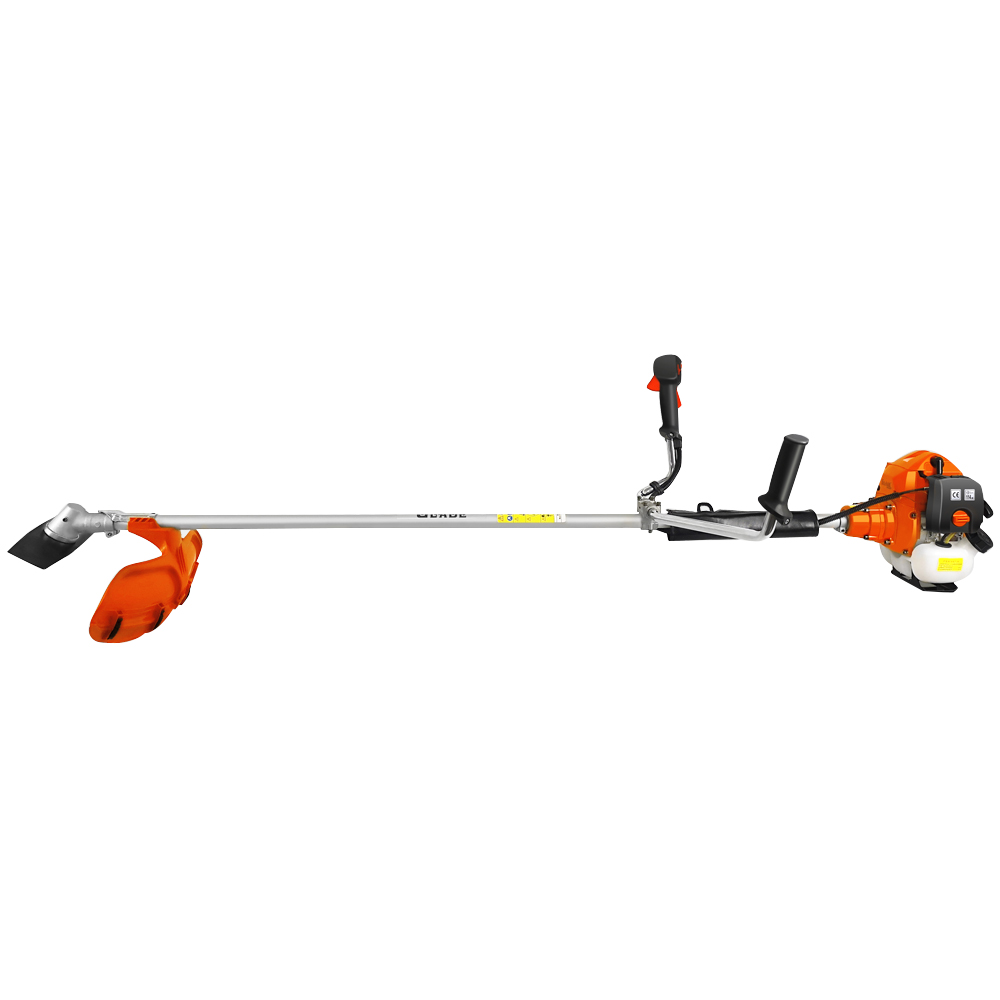

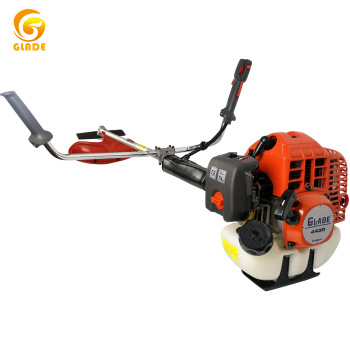

Brush Cutter 143R

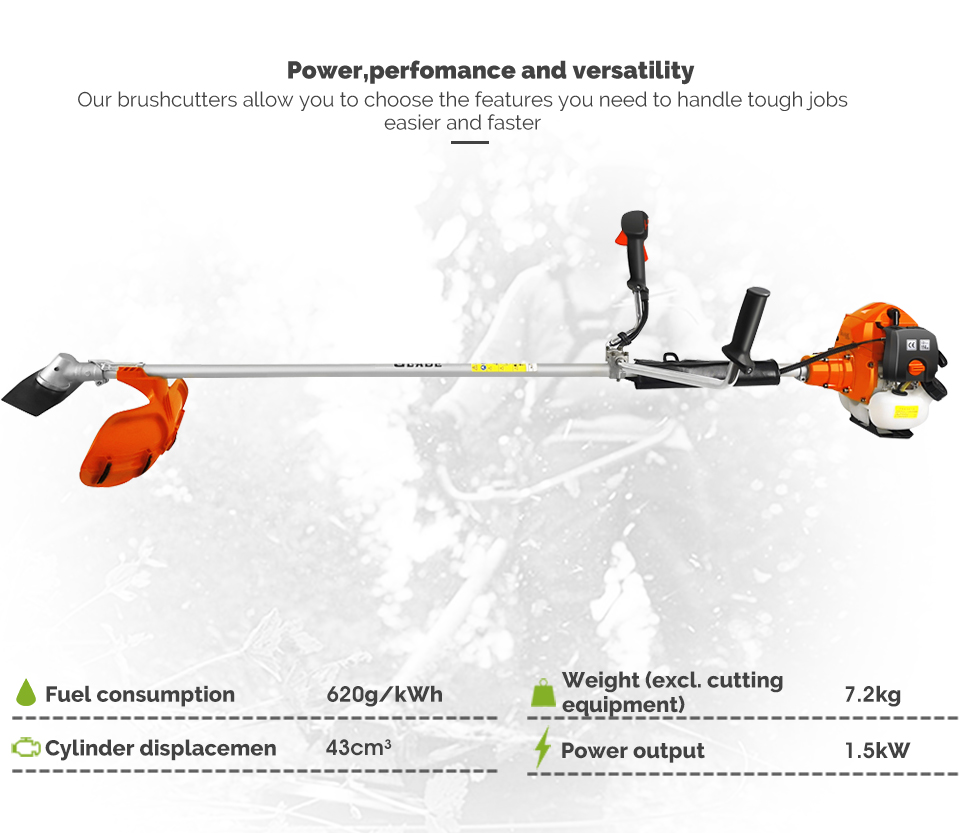

Fuel Consumption: 620g/kWh
Cylinder Displayplacem: 43cm³
Weight(excl.cutting equipment): 7.2kg
Power Output: 1.5kW
Detail

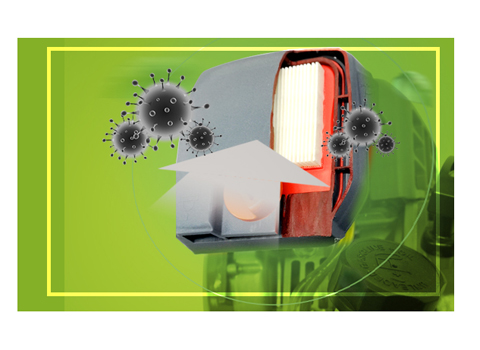

Paper Air Filter Element

Efficient filtering air,greatly extend machine life

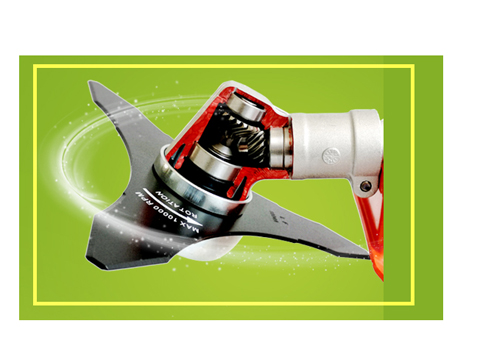

Grass Bevel Gear

Bevel gear designed with 1.5 modulus high torque and the cutting equipment parallell to the ground for best cutting performance

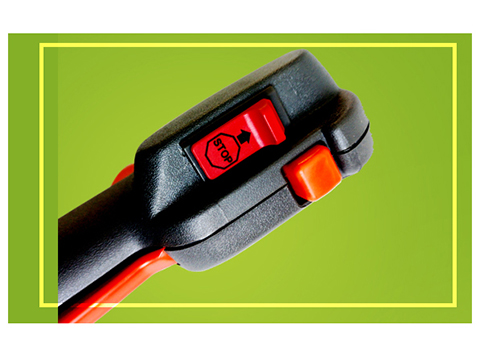

Auto Return Stop Switch

When the machine is turned off, the stop button automatically returns to start position for trouble free start.

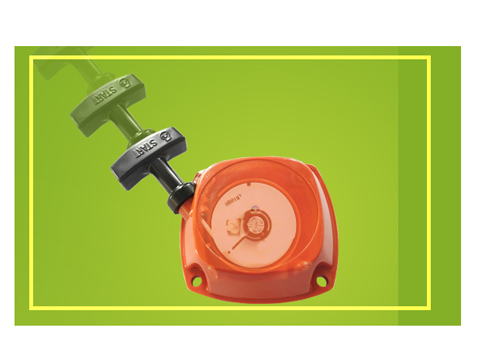

Genuine Stand Alone Starter

The stand alone starter makes it easy to

chage starter cord if needed.

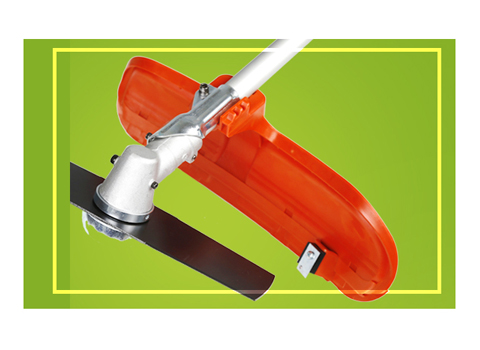

Versatile Guard

The cutting attachment guard can be used with either a grass blade or a trimmer head.

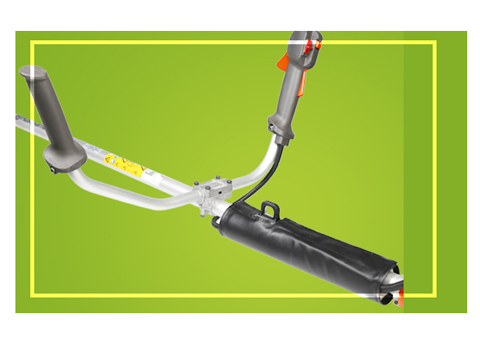

Comfort handle

Easily adjustable soft-grip handle for optimum comfort.







Engine

Displacement
43 CM³
Power output
1.5 KW
Maximun rpm output
7000 RPM
Fuel tank volume
0.9 L
Fuel consumption
620 G/KSH
Idling speed
3300 RPM
Clutch engagement speed
4200 RPM
Maximun rpm output shaft
8800 RPM

Transmission

Spindle size
M12X1.75V
Gear ratio
                            1.5M
Drive gear angle
                                30°

Dimensions
Net Weight
                              7.2kg
Length of sahft
                           1500mm
Diameter of shaft
                          26mm
Sound and Noise
Sound power level
                           105 dB(A)
