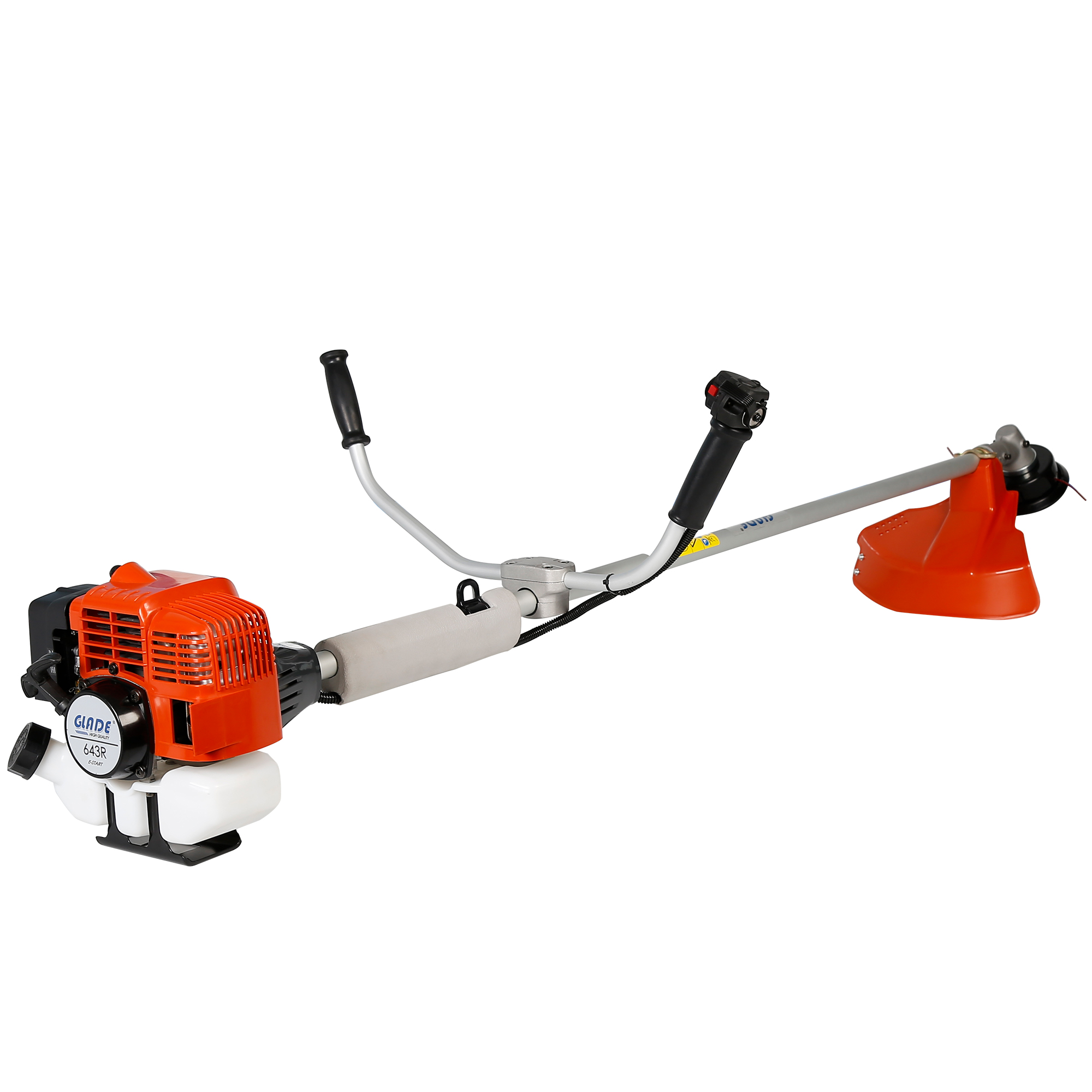

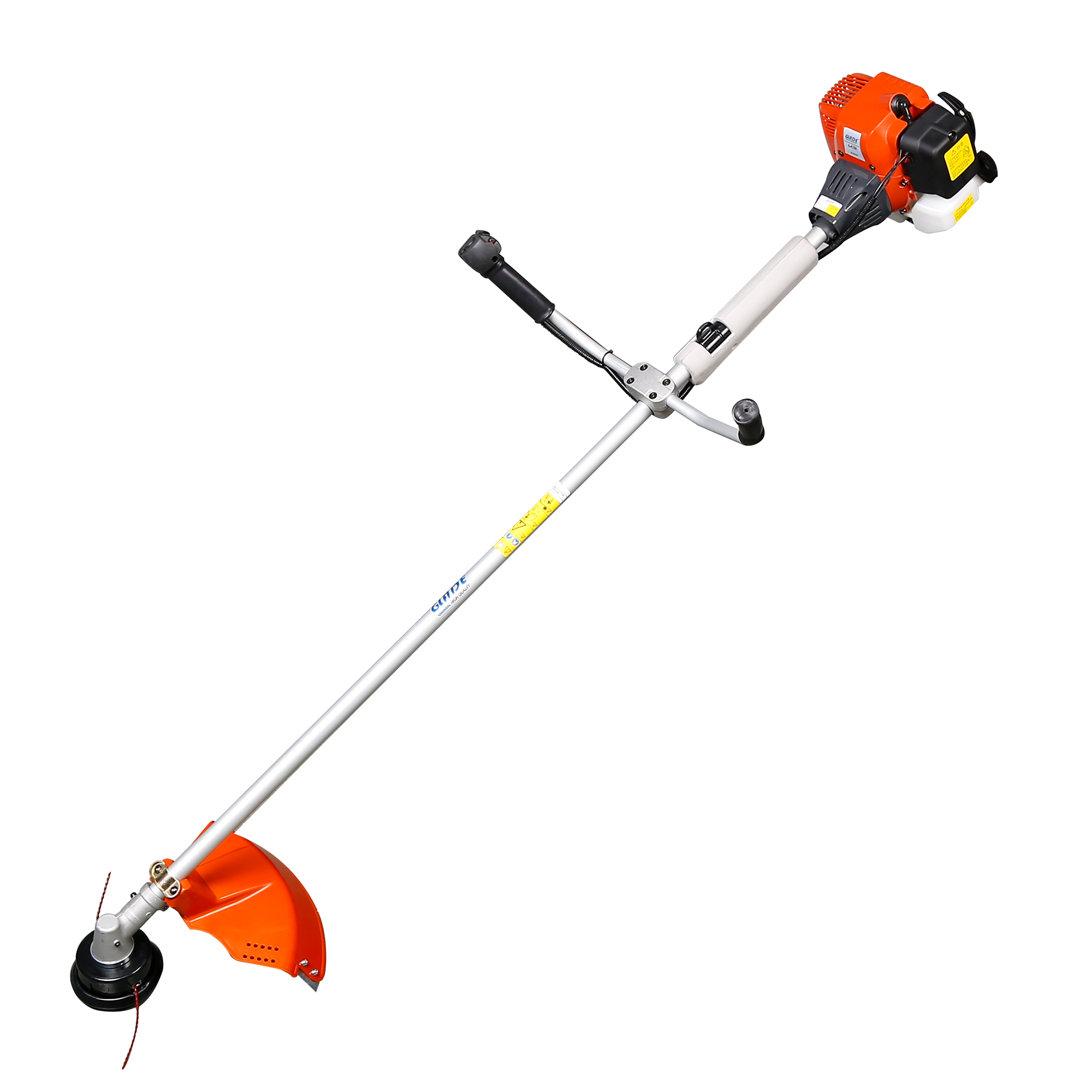

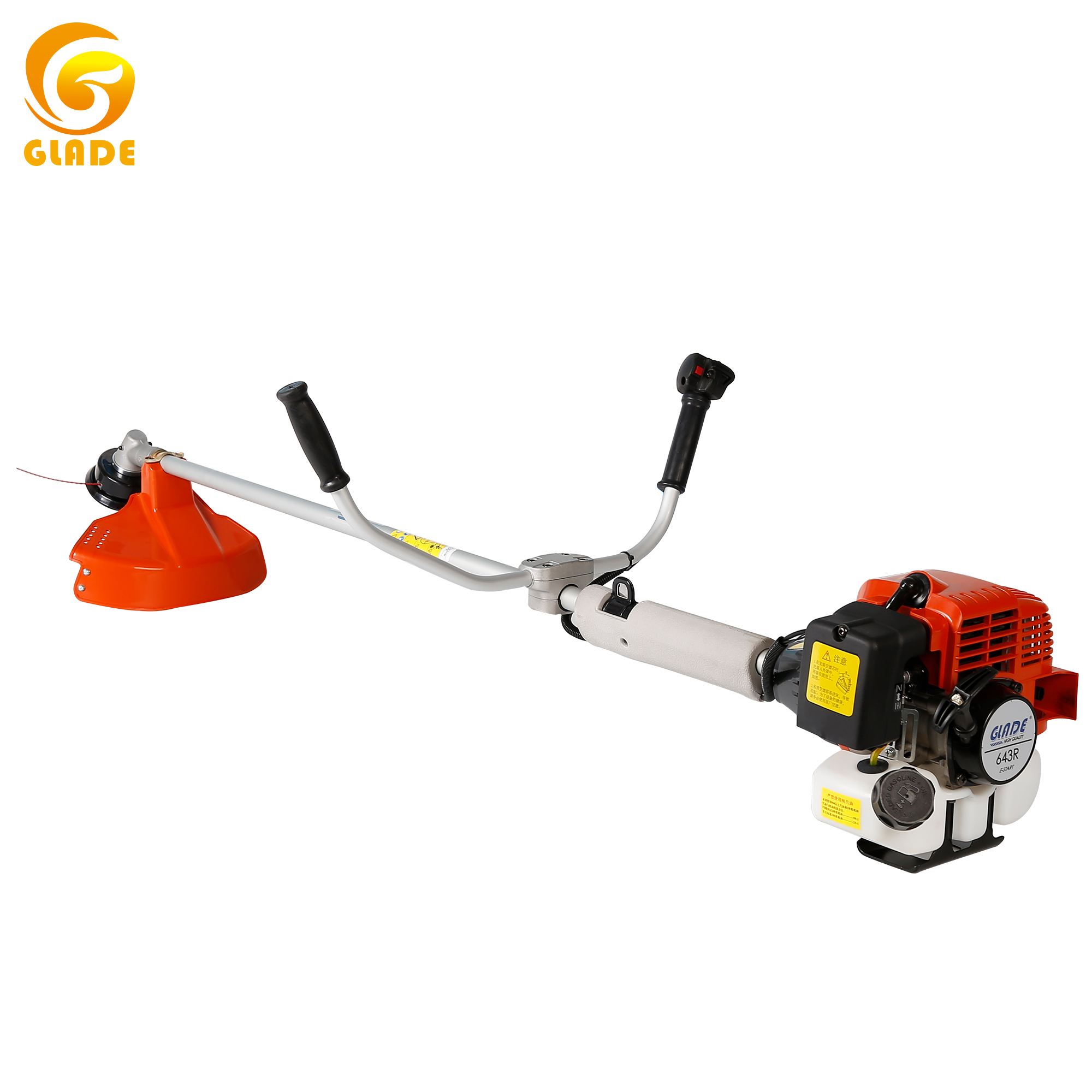

Brush Cutter 643R

Fuel Consumption: 620g/kWh
Cylinder Displayplacem: 43cm³
Weight(excl.cutting equipment): 7.5kg
Power Output: 1.6kW
Detail

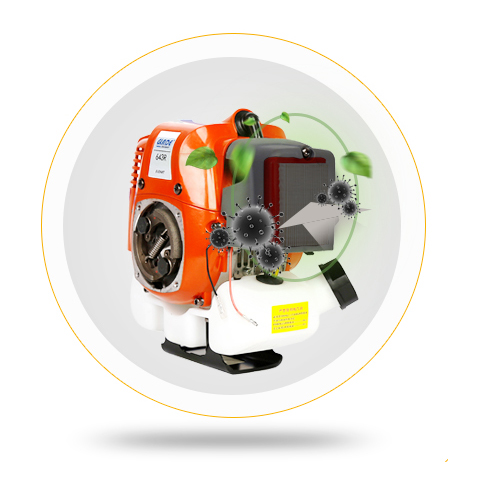

Paper air filter element

Efficient filtering air,greatly extend machine life

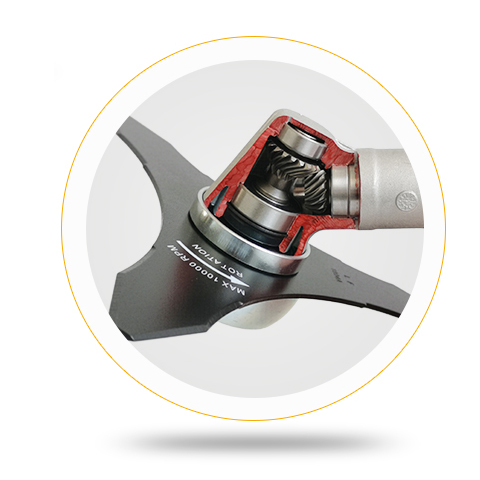

Grass bevel gear

Bevel gear designed with 1.5 modulus high torque and the cutting equipment parallell to the ground for best cutting performance

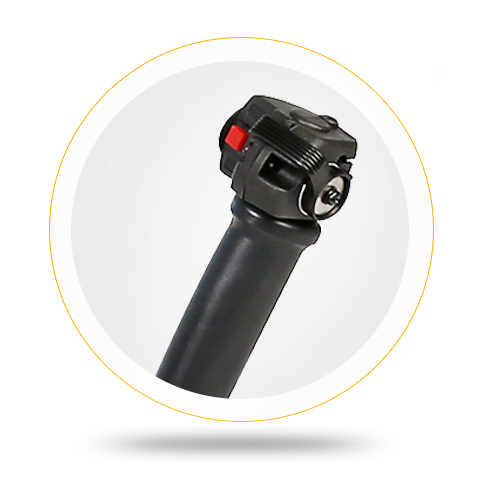

Auto return stop switch

1.When the machine is turned off, the stop button automatically returns to start position for trouble free start.

2.The throttle switch can be set at a fixed speed, which greatly reduces the working intensity.



Brush cutter type
643R
Engine type
Single cylinder,2stroke,air-cooled
Displacement [cc]
41.5
Max power - kw
1.6
Carburetor
Japanese Walbro diaphragm type
Start
a recoil rope KAR system
Fuel
mix 2%
Engine Oil Capacity ml
-
Fuel tank capacity l
0.8
Sound pressure level dB (A)
114
Type handle
handlebar
Shaft diameter
26 mm
Weight (dry) kg
7.6
Length [mm]
1800
Width [mm]
740
Height [mm]
460
Shoulder Strap
Double
Rock
Yes
Graco operations Tools
Yes
Gear ratio
1.5
