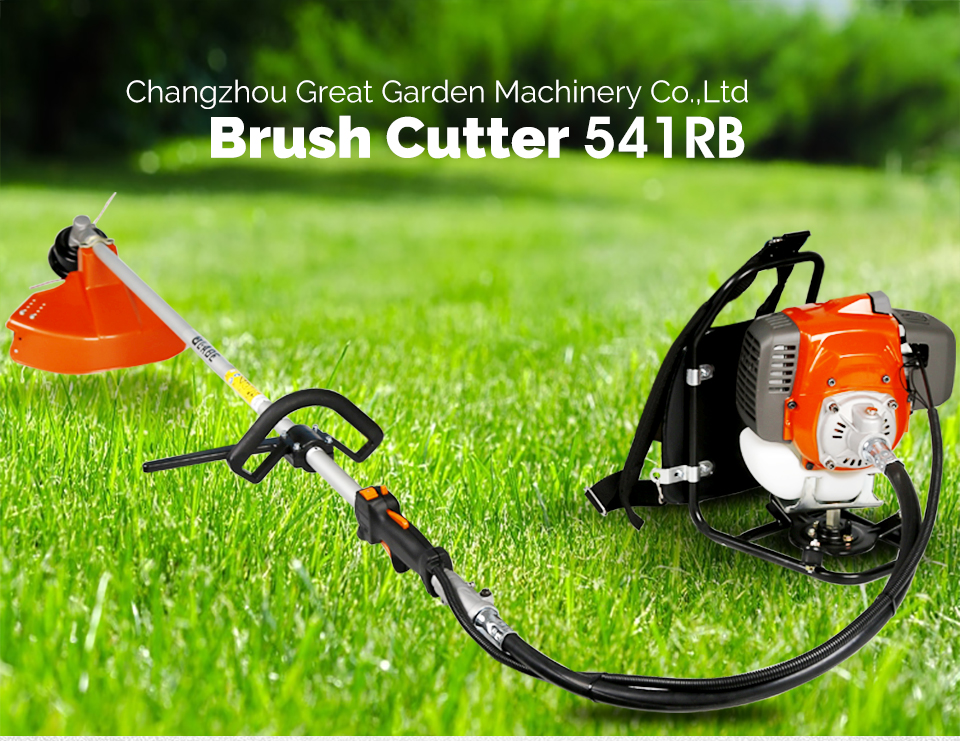

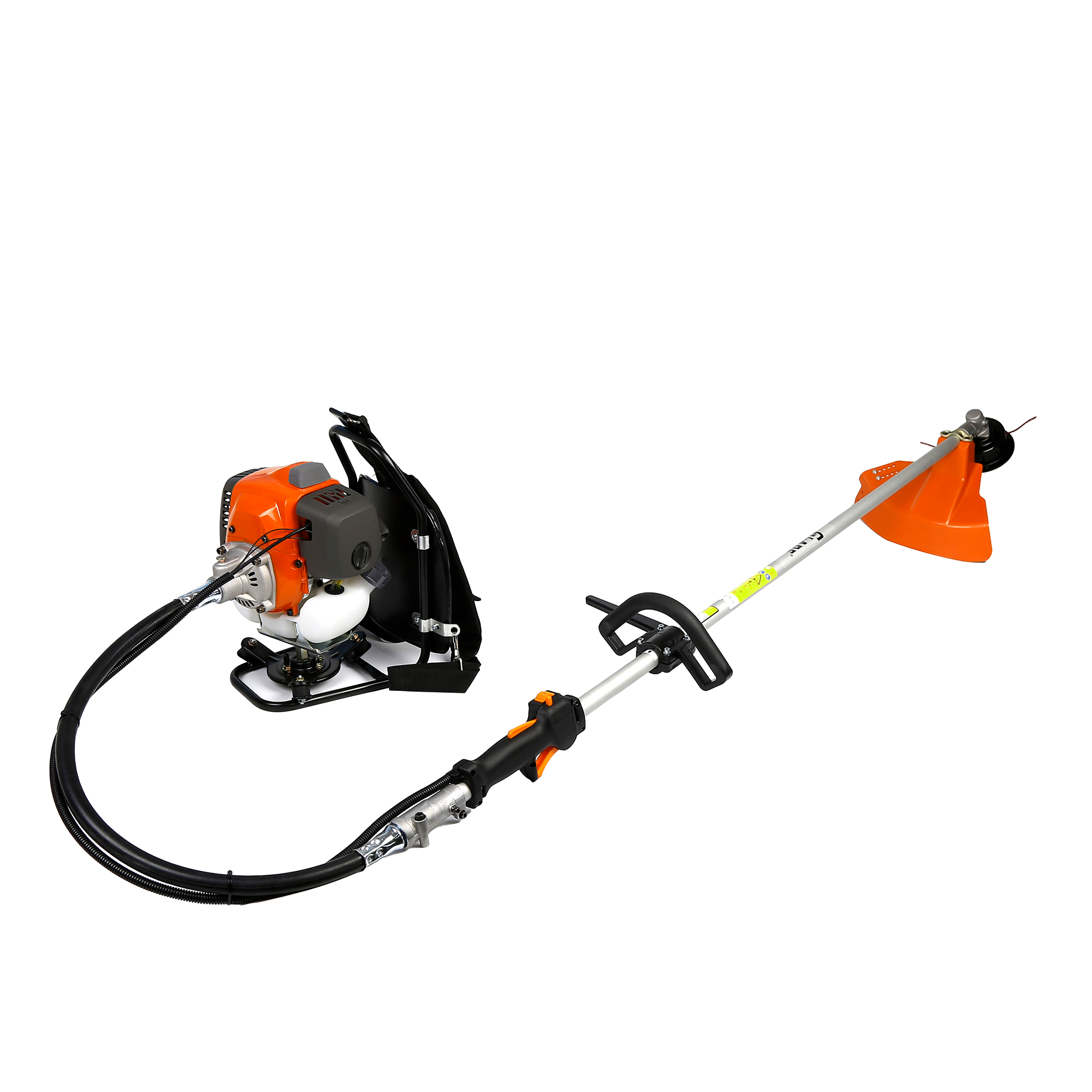

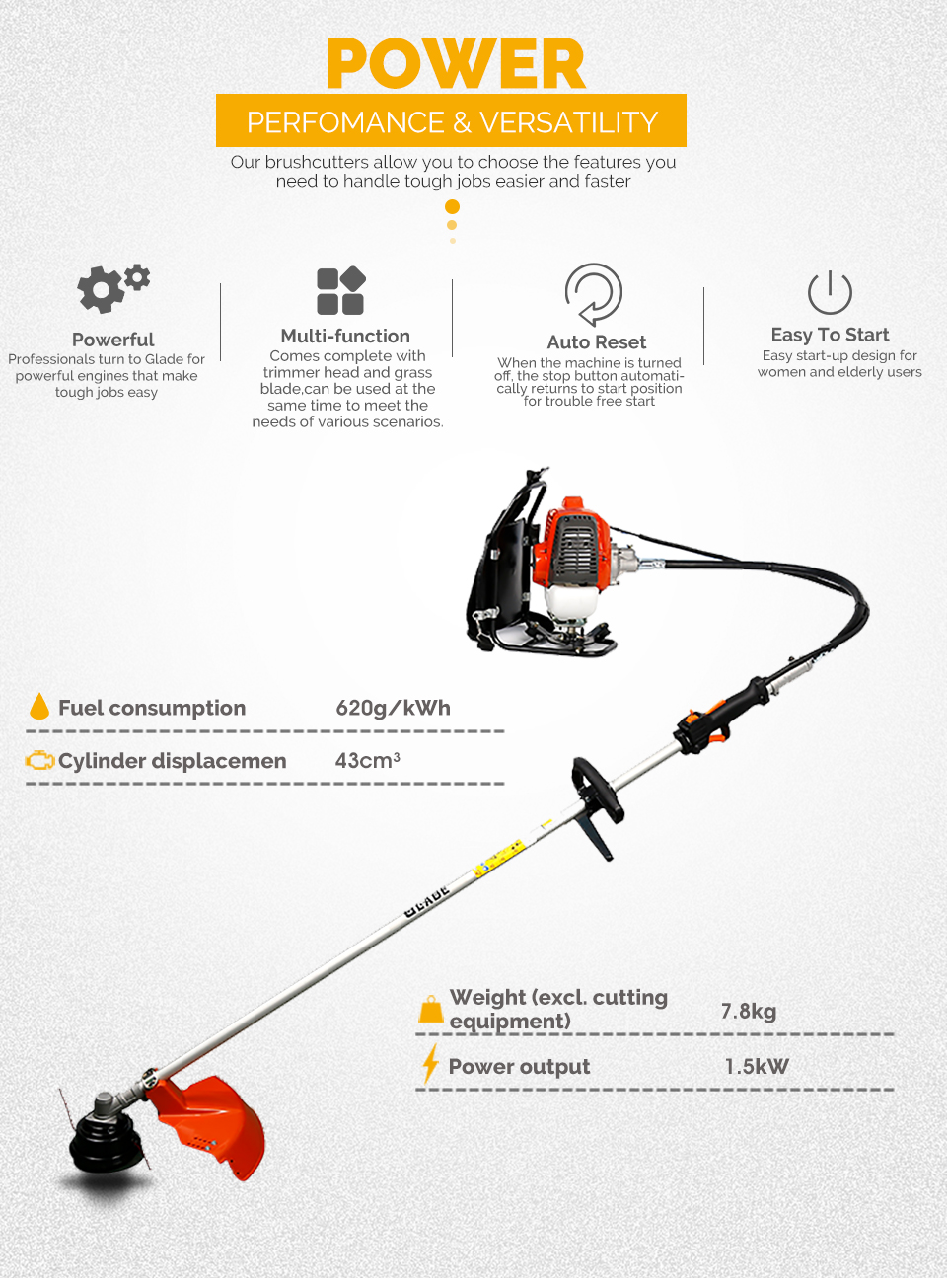

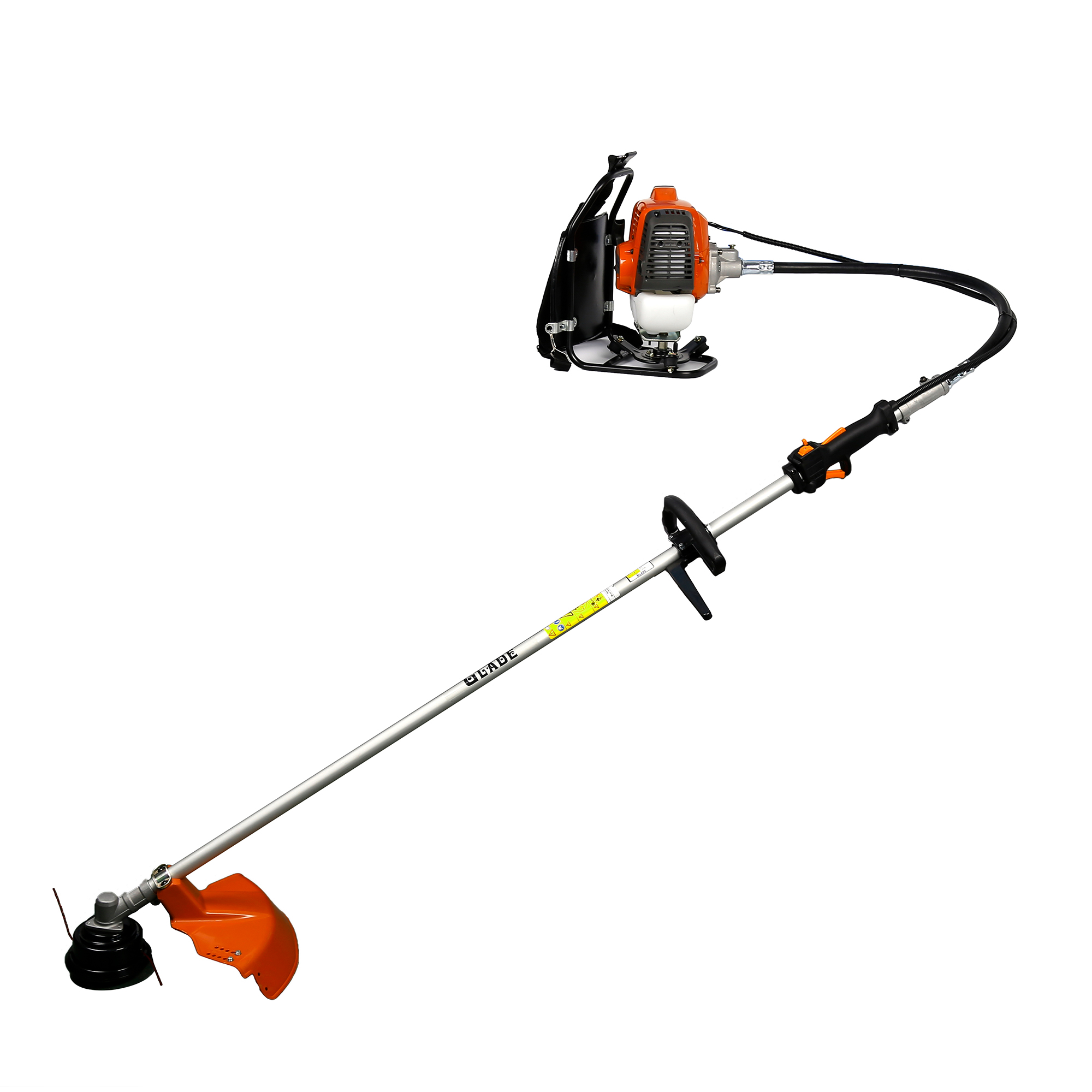

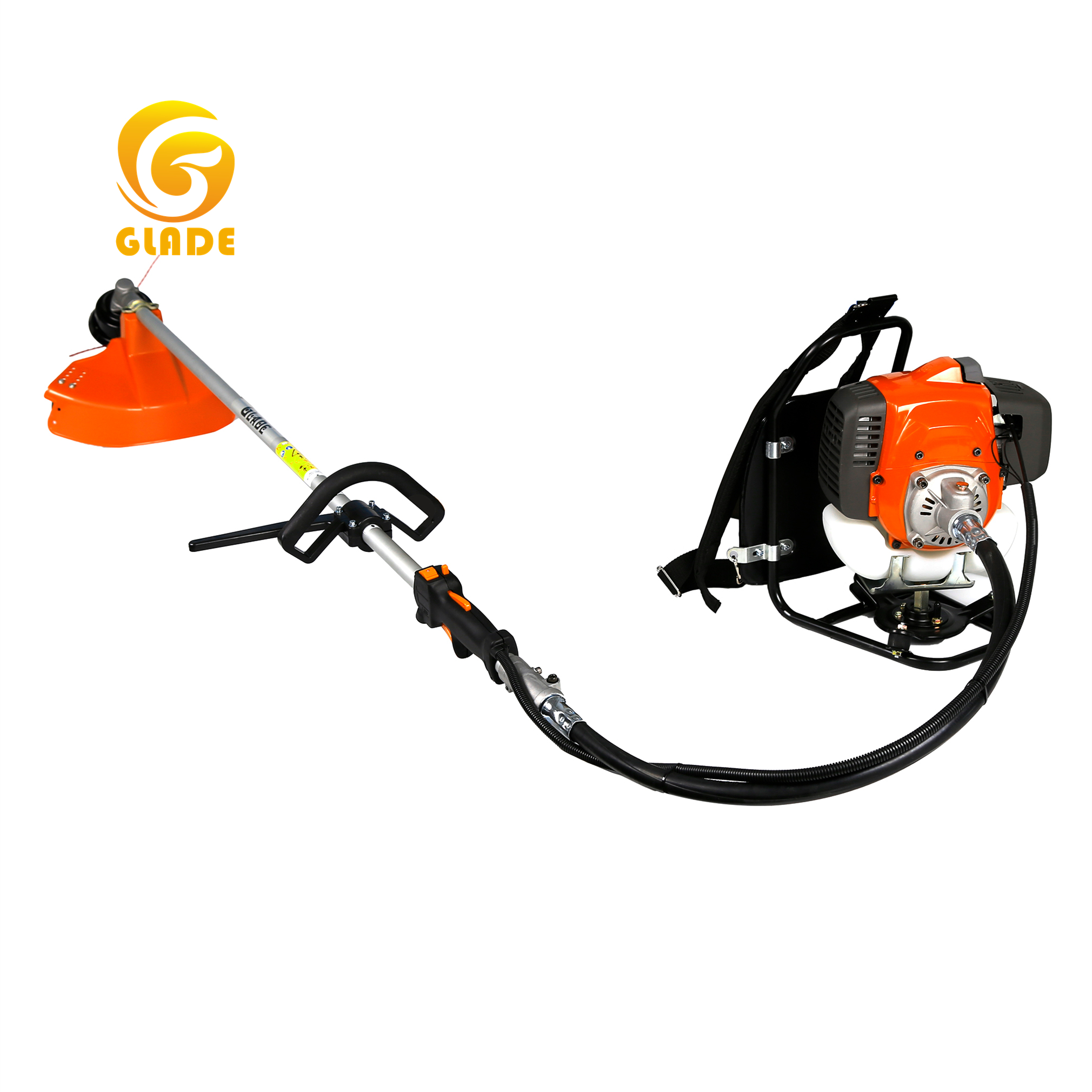

Brush Cutter 541RB

Fuel Consumption: 620g/kWh
Cylinder Displayplacem: 43cm³
Weight(excl.cutting equipment): 7.8kg
Power Output: 1.5kW
Detail

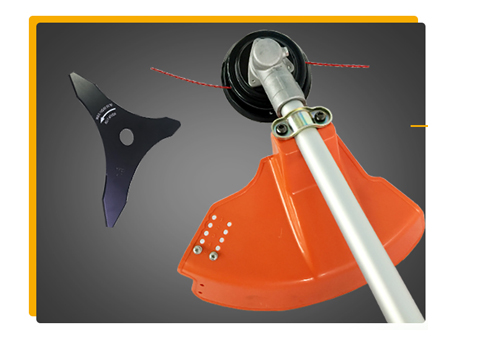

Versatile guard

The cutting attachment guard can be used with either a grass blade or a trimmer head.

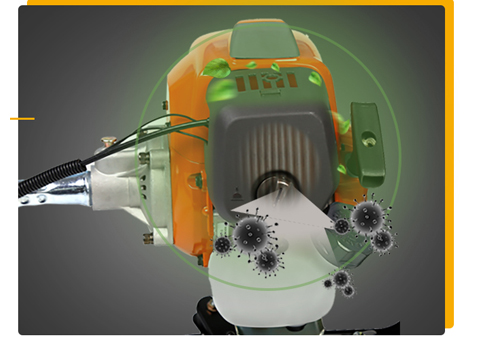

Paper air filter element

Efficient filtering air,

greatly extend machine life





Smart Start

The engine and starter have been designed so the machine starts quickly with minimum effort.

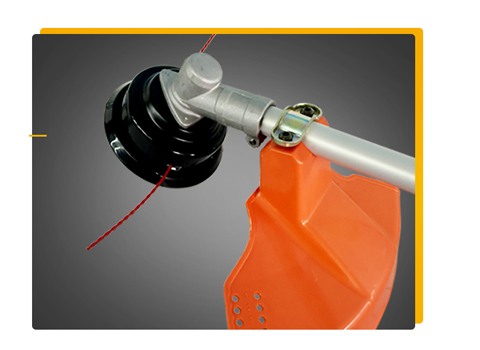

Grass bevel gear

Bevel gear designed with 1.5 modulus high torque and the cutting equipment parallell to the ground for best cutting performance

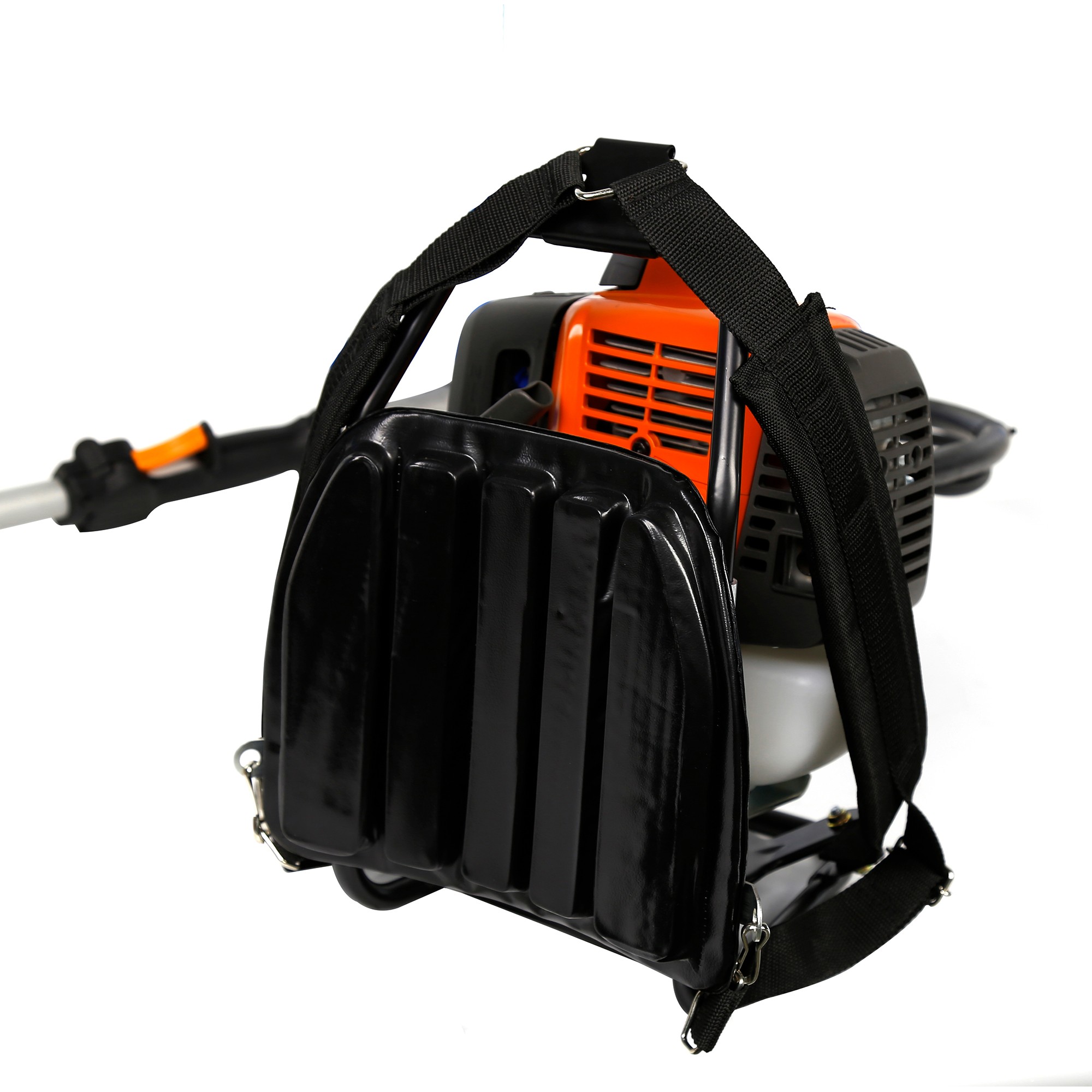

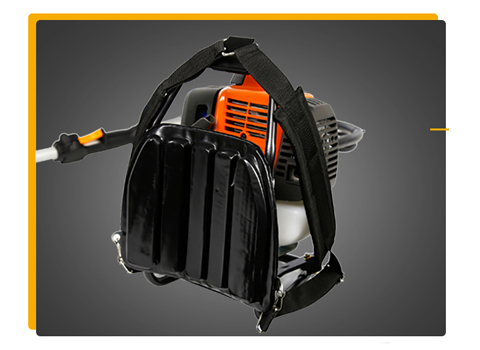

Ergonomic back frame

Ergonomic back frame can share the weight of most machines for easy work.






Engine
Displacement
43 CM³
Power output
1.5 KW
Maximun rpm output
7000 RPM
Fuel tank volume
0.9 L
Fuel consumption
620 G/KSH
Idling speed
3300 RPM
Clutch engagement speed
4200 RPM
Maximun rpm output shaft
8800 RPM
Spindle size
M10X1.25V
Transmission
Gear ratio
1.35
Drive gear angle
30°

Dimensions
Net Weight
7.8kg
Length of sahft
1500mm
Diameter of shaft
26mm
Sound and Noise
Sound power level
105 dB(A)
